Heavy Duty Hydraulic Pipe Bender

Introduction
Parameters

General Introduction

Heavy Hydraulic Pipe Bender is a plane pipe bender, which bend one bend in one time. If you need second bending you should feed and rotate pipe by manual. It's suitable for only bend one bend pipe. It can use for multi bend of small and light pipe. This kind pipe benderuse industrial touch screen and PLC programme software, it's widely used in shipyard, boilers, chemical industry, machinery and other industry's pipeprocessing.

Feature Highlights

Ø Hydraulic plane semi-automatic pipe bender, which can quickly complete the machining of a plane bend.

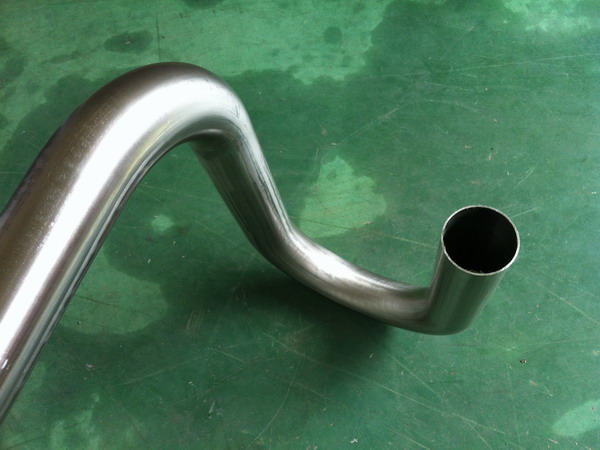

Ø Can bend 3D pipe fitting by artificial transposition and so on assistant way.

Ø Optional carriage device which can easily bend high quality 3D pipe.

Ø One tooling stack, once time clamping can automatic bend one elbow processing.

Ø Bend aixs, main clamp, auxiliary clamp, PDA, mandrel driven by oil cylinder.

Ø Automatic hydraulic PDA and automatic hydraulic mandrel function.

Ø Mandrel have in advance backward function.

Ø PDA move with bending.

Ø Usually bending radius should be 1.5 D to 5 D pipe, can increase according to needs.

Ø Can bend the material such as carbon steel, stainless steel, copper, aluminum, all can be processed solid or hollow.

Ø Actual bending radius mold decision according to the customer to choose.

Ø Machine should be installed the toolng to do the bending.

Ø Change tooling can achieve bending square, rectangular, L, C, H, special-shaped profile.

Ø Standard machine equipped with mechanical device and mechanical length positioning device.

Ø Standard models using Chinese and English operation, can choose the more language operation function.

Ø Input processing data, the system will automatically check for errors and warnings.

Ø Bending control program stored in the control system, to call at any time.

Ø Standard control system can save 500 groups of pipe material (expandable).

Ø Touch screen and PLC program control operation.

Ø Bending Angle digital setting and control function.

Ø Separate pedal control switch, remote operation, respectively.

Ø Can set the password protection function, prevent is not authorised officers of the modification process and operating the machine.

Ø A pipe fittings can be set up nine different bending Angle.

Ø Real-time display set the number of required processing quantity and processing has been completed.

Ø Have manual, semi-automatic and fully automatic operation function.Hydraulic oil cooling system of water-cooling

Ø Model machine, the user can choose and buy air cooling.Ø alternative bending speed adjustment function.

Ø Optional extended wear heart length or expand the bending radius and other special functions.
